A & B Tip 9 – drilling holes 3 – counterbores

9 Replies

In this series of posts, I’ll be providing tips that show how to do something in both AutoCAD and BricsCAD, hence A & B.

The Series

The idea behind this series is to provide useful information for several sorts of reader:

  1. AutoCAD users.
  2. BricsCAD users.
  3. People in the process of transitioning from AutoCAD to BricsCAD and who need to know what to do differently (if anything).
  4. People considering transitioning from AutoCAD to BricsCAD and who want to know about the differences and similarities.

Counterbored holes

This post continues to explain more about how to put holes in your 3D models. In this post I’ll be describing how to construct counterbored holes. Hint: the most efficient method is described last.

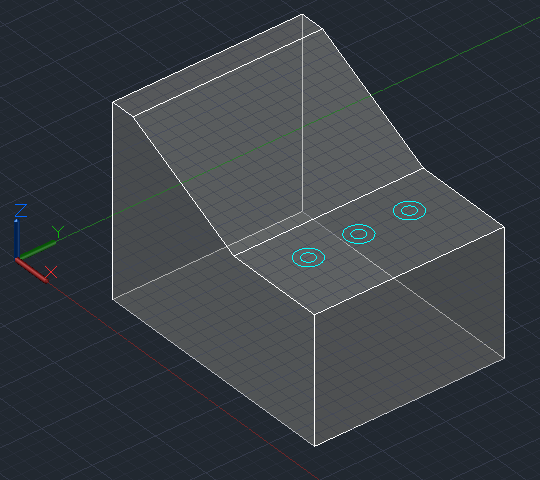

I’m going to start with this model and use different methods to create three counterbored diameter 10 holes that go through the block, each with a diameter 20 x 18 deep counterbore. I’ve placed circles of diameter 10 and 20 in place to indicate where the holes are going to go, and in some cases to act as the basis for extrusion.

If you’re unsure about how to locate these circles in exactly the right spots in 3D space, see my earlier drilling holes posts, part 1 and part 2.

Extruding circles

Assuming we have appropriate circles to work with, we can extrude them to create cylinders, then subtract them. This works in basically the same in both AutoCAD and BricsCAD, but there are differences:

AutoCAD BricsCAD

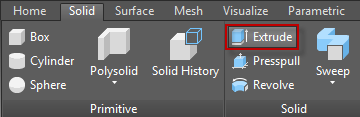

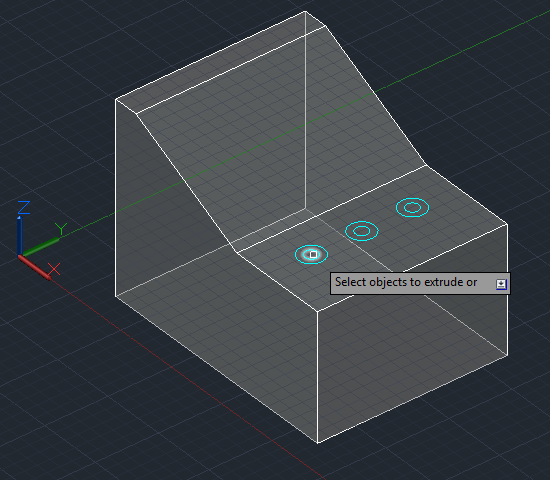

Invoke the EXTRUDE command:

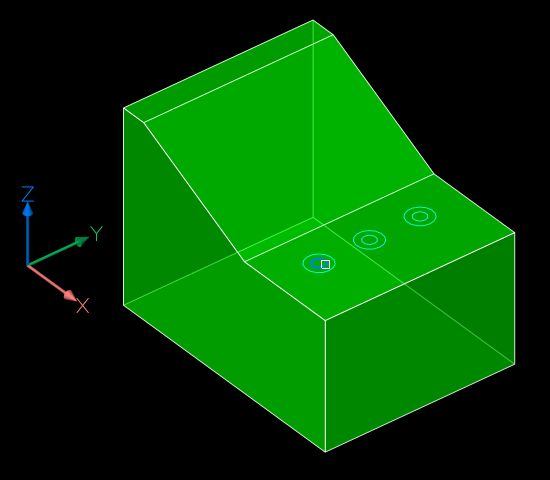

 Invoke the EXTRUDE command:
Select the inner circle and press Enter to complete the selection process:
 Select the inner circle and press Enter to complete the selection process:
Move your cursor down and click when the extrusion goes beyond the bottom of the block:

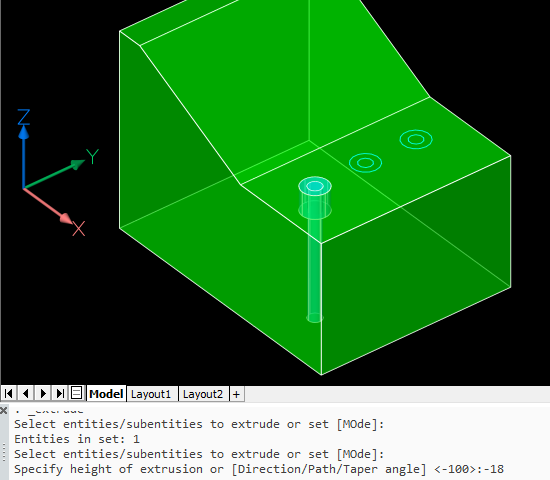

 Enter a negative number that equals or exceeds 100 (the thickness of the block):
If you just pick a point as per AutoCAD, the extrusion will go up rather than down. It’s also possible to point to the direction and amount to extrude by using the Direction subcommand and picking two points, for example a top and bottom corner of the solid.

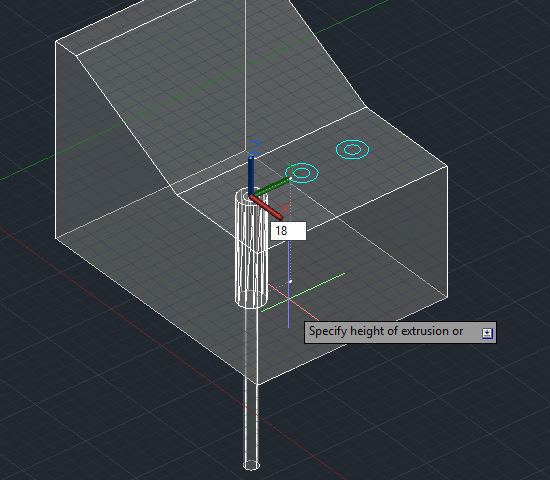

Repeat the above process for the second circle, but this time specify an extrusion height of 18 while the cursor is located such that the extrusion is going down rather than up:
 Repeat the above process for the second circle, but this time specify an extrusion height of -18. It has to be negative, otherwise the extrusion will go up even if you’re pointing down (unlike AutoCAD).

We’ll subtract these cylinders later.

Drawing cylinders

You can draw cylinders to subtract without needing construction circles. In this case one of the circles is just used to help locate the cylinder center point, but you can use other methods that involve no construction geometry instead, as explained in my first drilling holes post.

AutoCAD BricsCAD

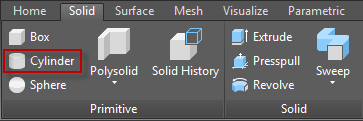

Invoke the CYLINDER command (Solid, not Surface):

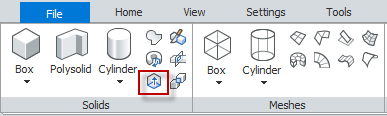

 Invoke the CYLINDER command (Solids, not Meshes):

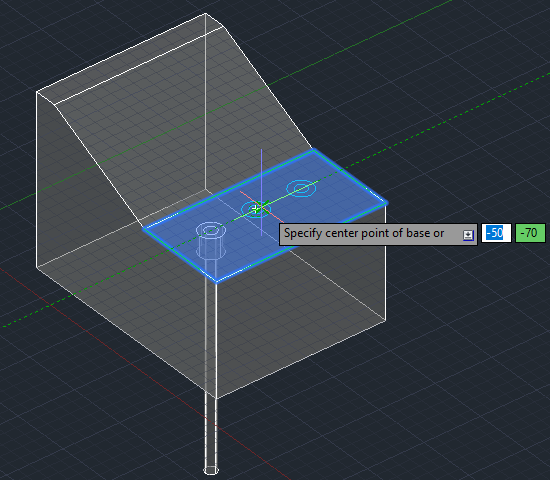

Locate the center of the cylinder, in this case using the center object snap:

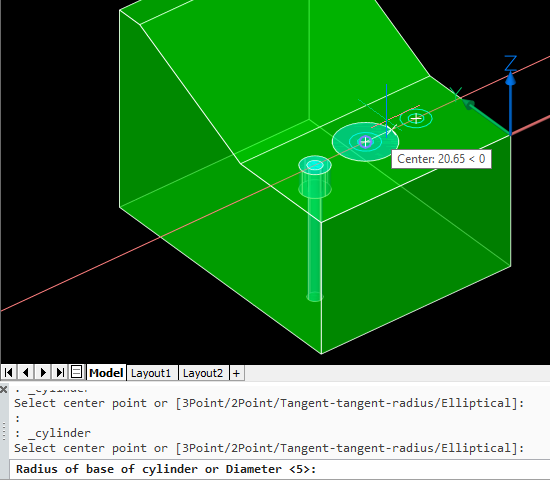

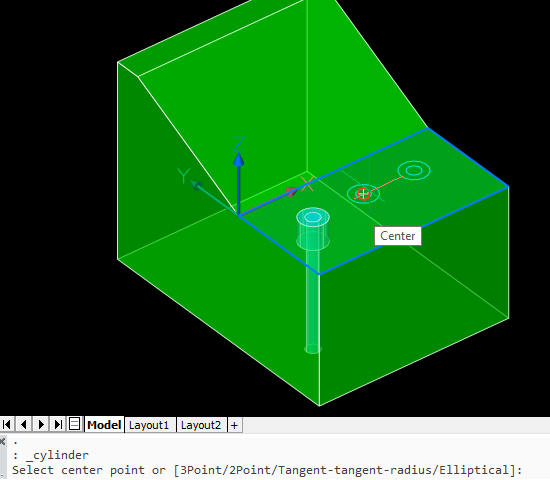

 Locate the center of the cylinder, in this case using the center entity snap:

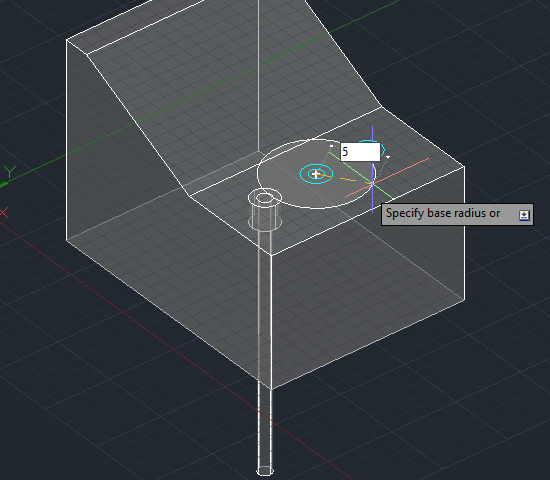

Enter a radius of 5:
 Enter a radius of 5:

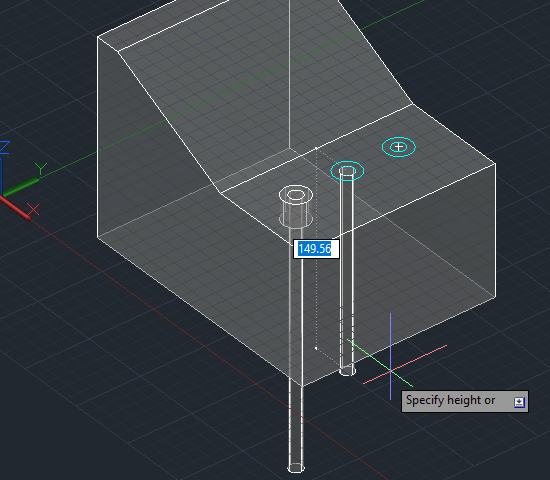

Move your cursor down and click when the extrusion goes beyond the bottom of the block:

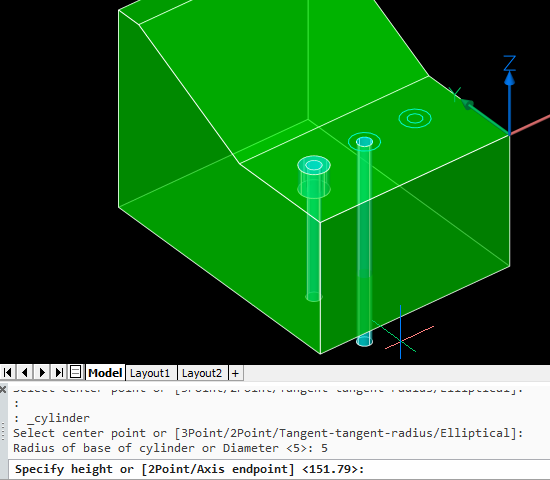

 Move your cursor down and click when the extrusion goes beyond the bottom of the block:

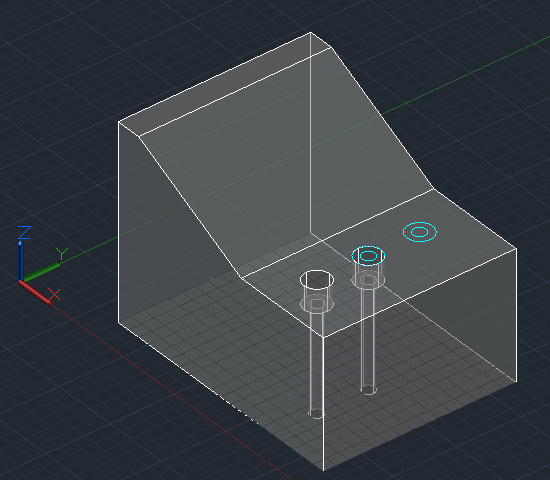

Repeat the above process for the second cylinder, but this time specify a height of 18 while the cursor is located such that the extrusion is going down rather than up:
 Repeat the above process for the second cylinder, but this time specify a height of -18:

Subtracting the cylinders

We can subtract all four cylinders at once to create two of the counterbored holes. This process is the same in both applications.

AutoCAD BricsCAD

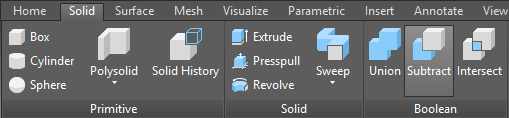

Invoke the SUBTRACT command:

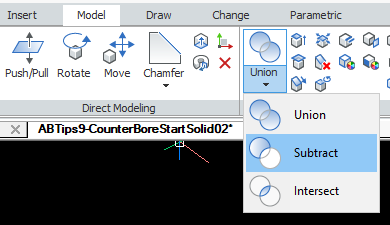

 Invoke the SUBTRACT command:

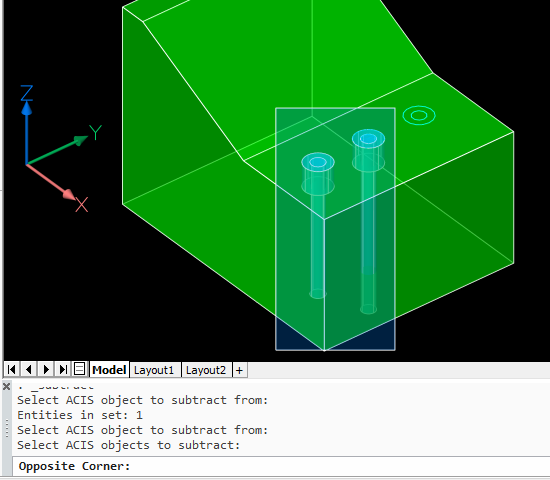

Select the main solid as the object to subtract from and press Enter to complete that selection. Then select the cylinders to remove. This is easiest with an implied window. Pick a corner point containing no objects, starting on the left. Then pick the opposite corner to the right.
Press Enter to complete that selection and the command.		 Select the main solid as the object to subtract from and press Enter to complete that selection. Then select the cylinders to remove. This is easiest with an implied window. Pick a corner point containing no objects, starting on the left. Then pick the opposite corner to the right.
Press Enter to complete that selection and the command.
End result:
 End result:

Note that the first method replaces the circles with cylinders. The second method only uses the circles to help locate the center; they don’t really need to be there at all and are ignored.

Presspulling or Push/pulling

As described before, planar objects such as circles can be extruded by presspulling them. We’ll use that method to create the third counterbored hole. In this case, the operations differ somewhat between AutoCAD and BricsCAD.

AutoCAD BricsCAD

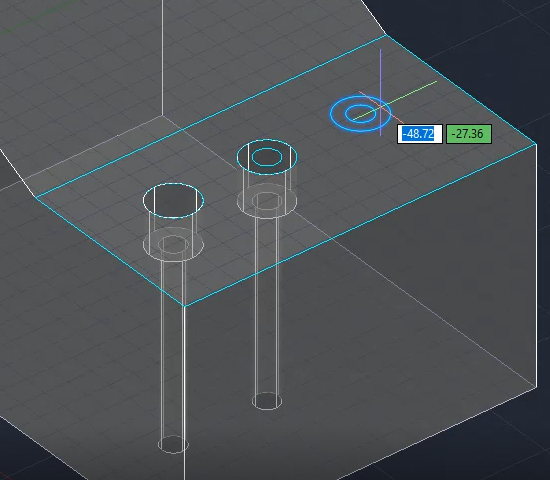

Hold down Ctrl+Shift+E to turn on dynamic presspull mode, hover over the space between the two circles and pick:
 Hover over the inner circle. You should see the Quad Cursor appear, suggesting a push/pull operation. Pick the icon to accept that operation:

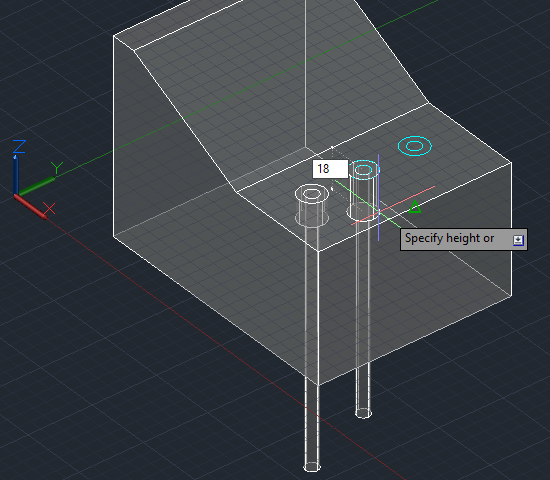

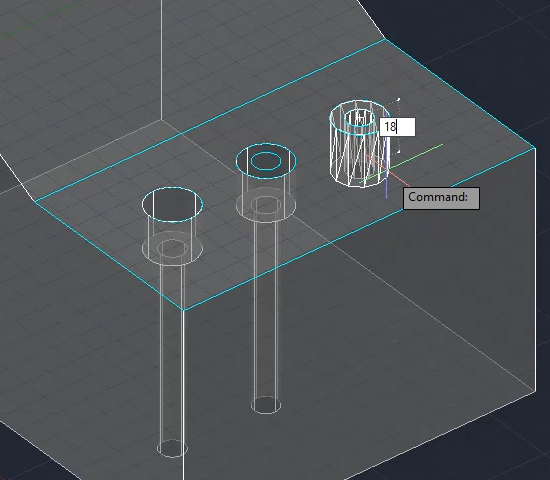

Now you can release Ctrl_Shift+E. Move your cursor down and enter 18:

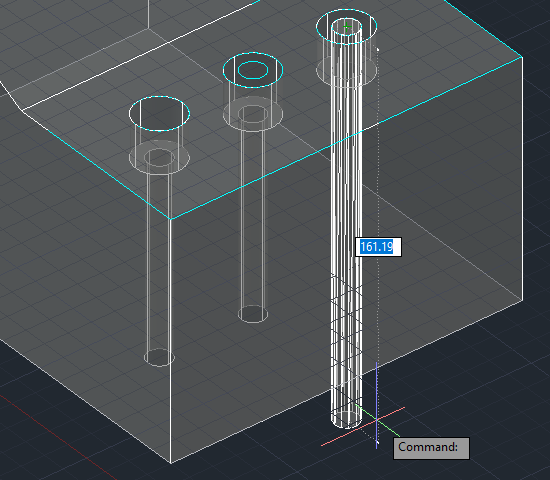

 Move your cursor down beyond the bottom of the block and pick.

Note the on-screen reminder that you can hit the Ctrl key to switch between several different types of push/pull operations. We can ignore this because in this case we want to use the default. However, it’s worth noting that this feature exists because it’s very handy.

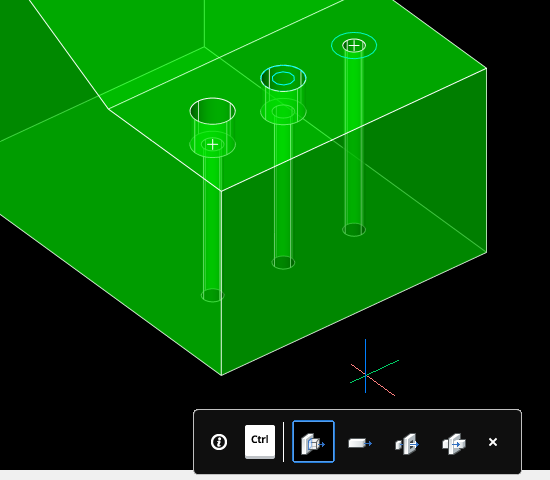

Hold down Ctrl+Shift+E to turn on dynamic presspull mode, hover over the inside of the inner circle and pick. Release Ctrl+Shift+E, move your cursor down beyond the bottom of the block and pick:

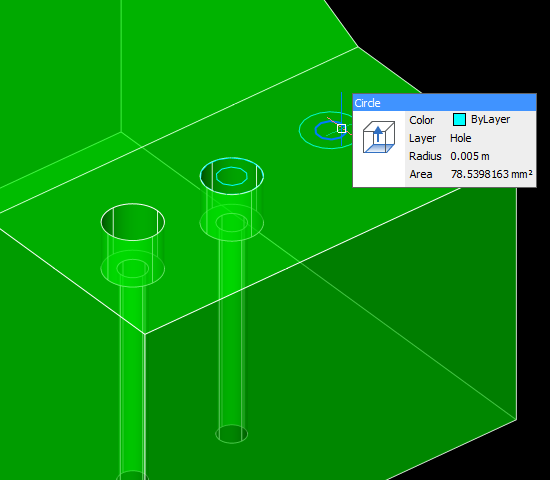

 Hover over the outer circle and pick the push/pull icon on the Quad Cursor. You could enter a height of -18, but in this case there’s a handy nearby hole counterbored to the correct depth and we can just pick the center of that instead:

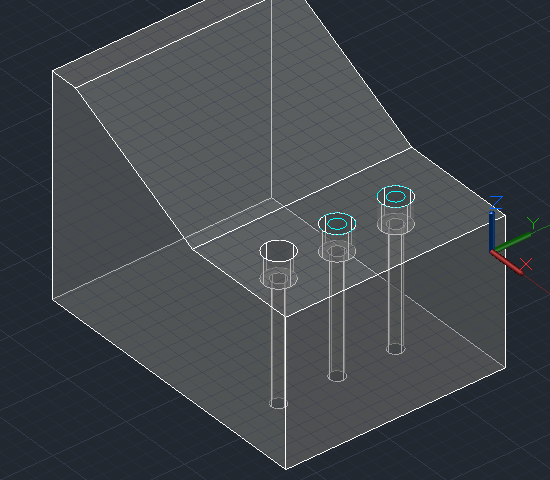

In the AutoCAD presspull end result, the circles are left behind so if you don’t want them you will need to erase them.
Note also that your UCS origin is changed by this operation even if dynamic UCS is turned off. To restore it, use UCS Previous or use the UCS menu under the ViewCube to change it to World or any other named UCS:

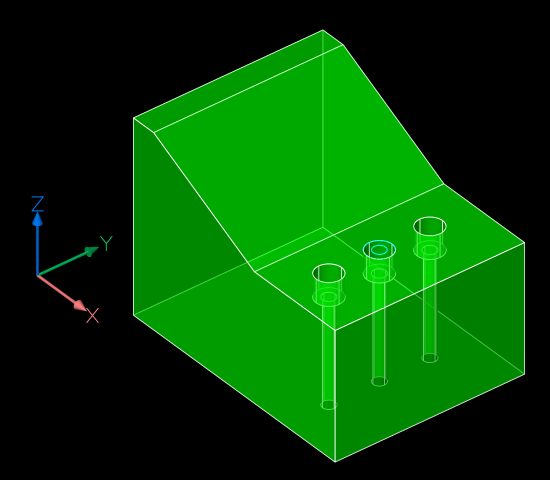

 In the BricsCAD push/pull end result, the circles are converted to holes so no more action is required. No UCS restoration is necessary.

Summary

Assuming you have construction circles in place, presspulling is the most efficient of the three methods in AutoCAD, even allowing for the tidy-up required at the end.

BricsCAD’s Quad-based push/pull operation is the most efficient method of the lot. Hover, pick, pick and hover, pick, pick is enough to create a counterbored hole.

Next: countersunk holes.

A & B Tip 8 – drilling holes 2

2 Replies

In this series of posts, I’ll be providing tips that show how to do something in both AutoCAD and BricsCAD, hence A & B.

The Series

The idea behind this series is to provide useful information for several sorts of reader:

  1. AutoCAD users.
  2. BricsCAD users.
  3. People in the process of transitioning from AutoCAD to BricsCAD and who need to know what to do differently (if anything).
  4. People considering transitioning from AutoCAD to BricsCAD and who want to know about the differences and similarities.

Drilling holes

This post continues to explain more about how to put holes in your 3D models. More than one method involves starting with a planar object (e.g. a circle for a cylindrical hole), but it needs to be in the right spot and in the right plane. The most efficient way of drawing an object in a given plane, where that plane exists on a 3D solid, is to use Dynamic UCS.

Dynamic UCS

First, we need to make sure Dynamic UCS is turned on. In AutoCAD, the Dynamic UCS icon looks like this:

If that’s not visible, you may need to make it visible using the hamburger menu on the far right of the status bar:

In BricsCAD, the text-based toggle (like the one AutoCAD users have been asking to return ever since it was removed a few releases ago) is DUCS:

Just in case that toggle’s not visible, there’s a list of toggles in a menu at the bottom right of the BricsCAD user interface, too:

You can also toggle the Dynamic UCS status in both applications using F6.

Having established that DUCS is on, invoke the Circle command. Hover over the plane that’s on the left as we’re looking at it, thus:

You are now working in a temporary UCS with an origin point in one corner of the 3D solid’s face, and as you move around you can use the coordinate display to get an idea of where the coordinates lie. If I enter -100,50 this is used in relation to the origin of the dynamic UCS and I will get a circle here:

Things work in a similar way in BricsCAD. You don’t get the on-screen dynamic coordinates, but you can still see them in the status bar and you do get a UCS icon that shows you how the temporary UCS is aligned. If you move your cursor around, you will be able to obtain different UCS alignments and easily see where the origin is and which way X and Y are oriented:

With this visual information and the dynamic UCS shown above, you can enter 100,50 to place the circle in the same spot as in AutoCAD.

Now we have our circle (and it could just as easily be a filleted rectangle or any other shape), we could extrude it as described in my previous post. Instead, let’s push and pull it into shape as described below.

Presspulling or Push/pulling

Instead of using the EXTRUDE command, planar objects can be extruded by presspulling them. Before drilling some holes, I should explain that there are several differences (some subtle) between extrusion and presspull:

  • Extruding replaces the original objects whereas presspulling leaves them in place and creates new objects.
  • The EXTRUDE command expects you to select objects to extrude; the PRESSPULL command allows you to point within an enclosed area. Depending on what you’re starting with, one command will be more suitable than the other.
  • Extruding an area enclosed by individual objects (e.g. lines) extrudes the objects into planar surfaces. Presspulling such an enclosed area results in a 3D solid being created based on an extrusion of the enclosed area.
  • An EXTRUDE of an enclosed planar object (e.g. circle, closed polyline) creates a 3D object. PRESSPULL can also do this, but when the planar object lies on the surface of a 3D solid, it can also create a hole in that solid.
  • Both commands can be used on faces of 3D solids; EXTRUDE will create a new solid based on an extrusion of that face and PRESSPULL will modify the original solid.

Presspulling in AutoCAD

In AutoCAD, you can use the PRESSPULL command:

Alternatively, you can use Ctrl+Shift+E to invoke presspulling: hold all three keys down and point within an enclosed area. Here’s an example. A circle has been drawn on the left vertical surface of our solid. Hold down Ctrl+Shift+E together and pick the interior of the circle. Let go of the keys and move your mouse to the right:

Pick a point beyond the extents of the solid. A hole is automatically created in the solid without having to explicitly subtract it, thus:

User actions required: a three-key combination and two picks. Note that the original circle is still present and if you don’t want it there you will need to erase it.

Push/Pulling in BricsCAD

In BricsCAD, there is no PRESSPULL command. Instead, the closest equivalent command name is DMPUSHPULL (the DM stands for Direct Modeling).

This command expects to work on faces of 3D solids, which is not exactly what we’re after for drilling holes. Instead, we use the DMEXTRUDE command. Now it might seem confusing that there are different commands to use for similar things, but in practice that doesn’t matter. That’s because we can just use the Quad Cursor and really not care what the underlying command is called. If you hover over a 3D solid’s face, the Quad Cursor gives you the options you need for dealing with that, and if you hover over a circle you are given the appropriate options for that instead.

Here’s the same example as above, this time done in BricsCAD. Hover over an object that defines an enclosed area, in this case our circle:

The Quad Cursor uses AI technology to initially provide the option that it thinks you’re most likely to use with that object under the current circumstances. I find it’s remarkably good at guessing what you want to do. If it’s wrong, you can get at a whole bunch of other options with a bit more hovering, but in this case it’s right; we do want to extrude the circle. Pick that icon, move over to the right and pick. That will create the hole:

User actions required: a hover and two picks. Again, the original circle remains behind and will need to be erased if you don’t want it left hanging around.

What about more complex holes? There are more tips and tricks coming, so watch this space.

A & B Tip 7 – drilling holes 1

2 Replies

In this series of posts, I’ll be providing tips that show how to do something in both AutoCAD and BricsCAD, hence A & B.

The Series

The idea behind this series is to provide useful information for several sorts of reader:

  1. AutoCAD users.
  2. BricsCAD users.
  3. People in the process of transitioning from AutoCAD to BricsCAD and who need to know what to do differently (if anything).
  4. People considering transitioning from AutoCAD to BricsCAD and who want to know about the differences and similarities.

Drilling holes

This post explains how to put holes in your 3D models. This post will cover some fairly straightforward topics but I intend to cover more involved details in future posts. I’ll assume you have a basic understanding of creating 3D primitives and the boolean operations (union, subtract and intersect). I will be using the 3D Modeling workspace in both AutoCAD and BricsCAD. I’m going to start with the dynamic UCS feature turned off and the 2D Wireframe visual style.

Vertical cylinder subtraction

Let’s take the simplest case. You have a solid and you just want to place a cylindrical hole in a known location that you already have geometry you can snap to. For example, you want to drill a DIA 40 hole right through this part, using the centerlines shown:

Start with the CYLINDER command:

AutoCAD BricsCAD

Pick the intersection of the two centerlines, enter a radius of 20 and a height of 100. You don’t have to be precise with the height, you can just point to any height that’s over 100:

To create the hole, use the SUBTRACT command:

AutoCAD BricsCAD

With this command it’s important to select the objects in the right order. Select the object(s) you’re substantiating from first, then press Enter to finish the selection process for those objects. Then select the object(s) you’re subtracting and press Enter to finish that selection process. That will give you your hole (temporarily switched to X-Ray visual style for clarity):

Extruding a circle

Instead of creating the cylinder diectly, you can instead extract a circle. This is an extra step if you don’t already have a circle of the right size in the right place, but less work if you do. For example, if you’re converting a 2D drawing to a 3D model, you’ll probably have the circle already.

Invoke the EXTRUDE command:

AutoCAD BricsCAD

Select the circle, press Enter to finish the selection (because you can extrude several objects at once) and specify a height of at least 100, as with the CYLINDER command. Subtract the resultant cylinder and you’re done.

It’s important to note that extrusions work perpendicular to the plane of the object(s) being extruded. In this case the cylinder is created vertically because the circle lies flat (in terms of the World Coordinate System). If you have a circle lying in a different plane, the extrusion will be perpendicular to that plane. For example, here a circle that lies in a vertical plane is being extruded horizontally:

Drawing a circle in the other planes

That’s all well and good if you have a circle in the right plane, but what if you need to draw one? You have several alternatives.

One method is to draw your circle in whatever plane you like, then use the ALIGN command to move it into place. That works, but it’s not that efficient.

Alternatively, you can change your UCS to align with your desired plane, and then just draw your circle. That can be fiddly, but if you have a handy solid object containing the plane you want to draw in, you can use the UCS command’s OBject option (hot tip: E for Entity does the same thing). By carefully hovering over the plane, you can set up your desired UCS with one click and a lot less tiresome fiddling around than trying to work out what the other (somewhat arcane) options of the UCS command all mean. Here, the UCS command’s OBject option is shown in action:

Note that this is an example of one of the very few things that works in AutoCAD but not BricsCAD. The UCS command’s OBject (and Entity) option exists, but you can’t use it to align a UCS with a solid’s face. You can, however, use the UCS command’s Face option. That exists in both applications, but I prefer the way it works in BricsCAD where the origin of the UCS is placed in one corner of the face with no further interaction required. In AutoCAD, the default is to place the UCS origin at some random point you used to select the face so if you need to locate points precisely there is a bit more messing around required.

Upshot: Use UCS E in AutoCAD and UCS F in BricsCAD.

In any case, there are other, more efficient ways to skin this particular cat. In my view, the most efficient way of drawing an object in a given plane, where that plane exists on a 3D solid, is to use Dynamic UCS. I’ll explain that, and how to push and pull your holes into submission, in the next post.

A & B Tip 6 – making polylines when you don’t have any

5 Replies

In this series of posts, I’ll be providing tips that show how to do something in both AutoCAD and BricsCAD, hence A & B.

The Series

The idea behind this series is to provide useful information for several sorts of reader:

  1. AutoCAD users.
  2. BricsCAD users.
  3. People in the process of transitioning from AutoCAD to BricsCAD and who need to know what to do differently (if anything).
  4. People considering transitioning from AutoCAD to BricsCAD and who want to know about the differences and similarities.

Why might you need a polyline?

In my last post (A & B Tip 5 – polyline areas) I described different methods of finding the areas (and perimeters) enclosed by polylines. That’s all well and good, but what if the objects that enclose your area aren’t nice convenient polylines? This post will help you make some. There are other reasons you might want polylines rather than whatever you have now. These include:

  • You can offset a polyline in one go rather than offsetting multiple objects and then joining them together.
  • You can apply fillets to a whole polyline with a single pick rather than lots of them.
  • A polyline can be extruded to make a 3D solid (or hole).
  • You can use a polyline to define a path that is used to extrude or sweep another polyline to make a solid with automatically mitred corners.
  • You can apply a width to a polyline and override that width for individual segments.
  • You can use a polyline as the basis to create a region, which allows you to do various cool things such as perform boolean operations on 2D objects.
  • Using polylines to define a hatch boundary can be less error-prone than using individual objects.
  • You can locate the geometric center of a polyline with the GCE object snap.
  • A polyline’s linetype can be persuaded to flow around the whole polyline rather than being confined to individual segments. In some cases, this means you will see a linetype where you would otherwise see only solid lines.

Having established various uses for polylines, and assuming you already have some objects and don’t want the tedious job of drawing over them manually, what can you do? Read on.

Note: in this post, the operations are exactly the same in both AutoCAD and BricsCAD with a couple of minor exceptions that I will point out as I go along.

PEDIT Join

If you’re fortunate enough to have a series of lines, polylines and/or arcs that are connected end-to-end without overlap to exactly define the area you want, then you can use the PEDIT command’s Join option to convert those objects to a single polyline. The command sequence dates from the mid-80s and is rather convoluted:

Command: PEDIT
Select polyline or [Multiple]: [pick an object]
Object selected is not a polyline
Do you want to turn it into one? [Enter] (this only appears if you pick a line or arc)
Enter an option [Close/Join/Width/Edit vertex/Fit/Spline/Decurve/Ltype gen/Reverse/Undo]: J
Select objects: [select a bunch of objects]
Select objects: [Enter]
X segments added to polyline
Enter an option [Close/Join/Width/Edit vertex/Fit/Spline/Decurve/Ltype gen/Reverse/Undo]: [Enter]

Note that the Do you want to turn it into one? prompt can be suppresses if you set PEDITACCEPT to 1. It’s also worth noting that if the properties of the objects vary, then the properties of the first-selected object will be used for the resultant polyline.

If you do a lot of this kind of operation, then it can be made more efficient using a menu macro. Some of us even made commands in LISP to simplify matters. A few releases ago, Autodesk did that for us when it added the JOIN command. BricsCAD followed suit to maintain command compatibility. This command joins various things in various ways, and one of those ways involves creating a polyline.

JOIN

The JOIN command, when applied to the same kind of convenient end-to-end objects described above, performs the same task as PEDIT Join, but with fewer prompts. Why not use it all the time then? Because sometimes it doesn’t work (in AutoCAD, at least). See the video for an example.

Video – PEDIT Join and JOIN in AutoCAD and BricsCAD

BOUNDARY

The BOUNDARY command, unlike the joining commands above, does not require that the objects lie conveniently end-to-end. Any group of objects that form an enclosed area can be used to create a closed polyline. Also unlike the joining commands, the existing objects are not converted to a polyline. Instead, a new polyline is created on top of the existing objects. The current properties (layer, etc.) are used to create the new polyline.

Assuming you’ve set your current properties to match the objects you want to create, invoke the BOUNDARY command (short form BO). A dialog will appear. There are minor differences between the AutoCAD and BricsCAD dialogs, but nothing that need concern us here.

Just pick the button at top left and start picking inside bounded areas. When you’re finished, press Enter and you’ll be left with a bunch of closed polylines. This video shows how it’s done.

Video – BOUNDARY in AutoCAD and BricsCAD


Finally, you can cut out the dialog box altogether and go straight to picking points if you use the command-line version, -BOUNDARY (note the leading hyphen). Just enter -BO, pick pick pick, Enter and you’re done.

A & B Tip 5 – polyline areas

2 Replies

In this series of posts, I’ll be providing tips that show how to do something in both AutoCAD and BricsCAD, hence A & B.

The Series

The idea behind this series is to provide useful information for several sorts of reader:

  1. AutoCAD users.
  2. BricsCAD users.
  3. People in the process of transitioning from AutoCAD to BricsCAD and who need to know what to do differently (if anything).
  4. People considering transitioning from AutoCAD to BricsCAD and who want to know about the differences and similarities.

What area is that polyline?

There are several ways of determining the area enclosed by a polyline. This post goes through the various methods. You will also notice that in each of the methods, you get the length (perimeter) as a bonus.

Spoiler alert: the most efficient methods are at the bottom. There’s a one-click method in AutoCAD (it needs a little setting up first) and a zero-click method in BricsCAD.

LIST command in AutoCAD

The oldest method is the good old LIST command. Although this has been around for ever, here’s how it works in recent AutoCAD releases. Issue the LIST command, select the polyline, press Enter to finish the selection, and above your floating command line AutoCAD will show something like this:

If this display goes away and you want to see it again, hit F2 and it will return. If you have a docked command line, AutoCAD will display the information on the text screen, which it will then display:

If you have a floating command line but want to see the text screen rather than the over-the-command-line popup, you can switch to it using Ctrl+F2.

LIST command in BricsCAD

The command works in just the same way in BricsCAD as it does in AutoCAD with the docked command line.. The main differences are that the BricsCAD default interface has a docked command line, and that the text screen (called Prompt History in BricsCAD) is displayed even when using a floating command line.

If the text screen goes away or is obscured, you can restore it using the familiar-to-AutoCAD-oldtimers keystroke of F2 (not Ctrl+F2, which toggles the ribbon in BricsCAD).

Unit precision in BricsCAD

Another difference you might notice is that the only whole units are displayed. This is because BricsCAD respects the setting of DIMZIN when displaying values in the AREA command and AutoCAD doesn’t. In this drawing, DIMZIN is set to 8, which suppresses trailing zeroes. Because the area is exactly 448.0, BricsCAD displays it as 448. If DIMZIN is not set to suppress trailing zeroes, this doesn’t happen. If DIMZIN is set to 0, BricsCAD displays the area using the setting for linear units precision, LUPREC. If this is 4, the LIST command will display the area as 448.0000, as it does in AutoCAD.

This respect for DIMZIN applies in other places in BricsCAD too. For the remainder of this post I’ll have DIMZIN set to 0.

AREA command in AutoCAD

Another good old method is the AREA command. Issue the command, use the Object option and pick your polyline. You will be shown the area in two places as shown here:

AREA command in BricsCAD

The AREA command works similarly in BricsCAD. Although the options displayed indicate that the subcommand is Entity rather than Object, you can in fact use either E or O to initiate selection of an object. Unlike AutoCAD, the area is displayed in one place only, the command prompt area:

Note that the AREA command in both applications gives you more options, including adding together several areas.

Properties palette in AutoCAD

If you have the Properties palette visible (Ctrl+1 will toggle it on), you can simply select the polyline and the area will be displayed in the palette, thus:

Note that unlike the AutoCAD AREA command, the Properties palette does respect the value of DIMZIN. To display the trailing zeroes, first set DIMZIN to 0.

Properties palette in BricsAD

Using the Properties palette in BricsCAD is identical to AutoCAD. Here’s the display:

Quick Properties in AutoCAD

Quick Properties is a cursor-based cut-down version of the Properties palette. It’s not what you get when hovering, which is this:

What you want is Quick Properties, which you only get when you select an object, for example:

Unfortunately, Area is missing. It was there once upon a time, but there were performance problems so it was removed by default. However, you can add it back in. Invoke CUI and pick Quick Properties on the left. Scroll down on the right and pick Polyline.

Turn on Area (and Length if you want). Pick OK. Now see what happens when you select a polyline:

Note: in AutoCAD 2014 (and maybe others), the Area option was missing. There’s a workaround, but it’s a complex hack and well beyond the scope of this post.

Quad cursor in BricsCAD

The easiest way to find a polyline area in BricsCAD is just to hover over it. The Quad cursor will appear, giving you the information you need:

Alternatives

If you’re doing this regularly, it makes sense to automate it as much as possible. Depending what you want, menu macros might help. There are also various free LISP routines around that do this sort of thing, for example these by Lee Mac. If you have more specific requirements (e.g. automatic area label, export to CSV), then that’s the sort of thing I do for a living so feel free to get in touch.

A & B Tip 4 – turning on toolbars

6 Replies

In this series of posts, I’ll be providing tips that show how to do something in both AutoCAD and BricsCAD, hence A & B.

The Series

The idea behind this series is to provide useful information for several sorts of reader:

  1. AutoCAD users.
  2. BricsCAD users.
  3. People in the process of transitioning from AutoCAD to BricsCAD and who need to know what to do differently (if anything).
  4. People considering transitioning from AutoCAD to BricsCAD and who want to know about the differences and similarities.

Your First Toolbar

If you are using a ribbon-based workspace, you may want to have some toolbars visible, too. There are several reasons you might want to do this. You might want some buttons to be consistently visible, no matter what the ribbon state. Although the QAT in AutoCAD provides some toolbar space, you might want more space than it offers. You might also want toolbar controls that are not available in the QAT; several of them only work in conventional toolbars. You might want the buttons in a different place, such as down one side or on a second screen.

If you have at least one toolbar visible already, things are easy. If you right-click on that toolbar, you will get a menu that allows you to turn on any other toolbar in the same customization group (CUI or CUIx file). Here it is in AutoCAD:

Here’s the equivalent in BricsCAD:

Note that in BricsCAD, the list of toolbars is one level down because the first-level right-click menu in BricsCAD gives you many more interface options.

What if the toolbar you want to turn on is in a different customization group? You can get at those easily enough by right-clicking on any blank (unused) area of a docked toolbar area. AutoCAD:

You can do the same in BricsCAD:

The difference with BricsCAD is that you don’t need to have a docked toolbar with spare space in it to access toolbars in different groups. They’re all available by right-clicking any toolbar button, docked or not.

That’s all easy enough, but what if you don’t have any toolbars visible? You’re stuck in a Catch-22 situation. You need a toolbar to click on to load a toolbar. How do you get that first toolbar loaded?

AutoCAD Interactive Method 1

The first trap to avoid in AutoCAD is using the TOOLBAR command. From Release 13 to AutoCAD 2005, that was useful. With the introduction of CUI files in 2006, the TOOLBAR command became a near-useless cut-down version of the CUI command.

Ignore that. If you’re going to use the CUI interface, use the whole thing. Enter the CUI command. In the top left pane, pick the workspace you want to change:

In the top right pane, pick Customize Workspace. In the left pane, expand the Toolbars part of the tree and turn on one of the toolbars:

Pick Done (top right) and OK (bottom). Your chosen toolbar will appear.

AutoCAD Interactive Method 2

If you have your pull-down menu bar turned on, you can get at the toolbars using the Tools menu as shown here:

You can turn on your pull-down menu bar by setting MENUBAR to 1.

Thanks to James Maeding for pointing that out.

BricsCAD Interactive Method

In BricsCAD, you can turn on toolbars interactively even if there are none visible, without having to deal with the CUI interface. Just right-click in any part of the ribbon, and you will see the same menu you get when right-clicking a toolbar area. That gives you access to all of the toolbars in all of the groups.

AutoCAD Command Line Method

If you want to use the command line to turn on a toolbar, you need to use the -TOOLBAR command (note the leading hyphen). You also need to know the name of the customization group and what the toolbar itself. One example is the Object_Snap toolbar within the ACAD group. The command line required is therefore:

-TOOLBAR ACAD.Object_Snap Show

To be sure this will work in all environments, I recommend you add the special characters _ and . thus:

_.-TOOLBAR ACAD.Object_Snap _Show

BricsCAD Command Line Method

In BricsCAD, you don’t need the leading hyphen in the TOOLBAR command (although you can use it if you like). The customization group and toolbar names will be different, but the syntax is the same. For example:

TOOLBAR BRICSCAD.TB_EntitySnaps Show

The recommended special characters also do the same job in BricsCAD:

_.-TOOLBAR BRICSCAD.TB_EntitySnaps _Show

A & B Tip 2 – realistic threads

3 Replies

In this series of posts, I’ll be providing tips that show how to do something in both AutoCAD and BricsCAD, hence A & B.

The Series

The idea behind this series is to provide useful information for several sorts of reader:

  1. AutoCAD users.
  2. BricsCAD users.
  3. People in the process of transitioning from AutoCAD to BricsCAD and who need to know what to do differently (if anything).
  4. People considering transitioning from AutoCAD to BricsCAD and who want to know about the differences and similarities.

Realistic Threads

This post explains how to create realistic-looking threads for screws, nuts and the like in your presentation 3D models. I don’t suggest you do this routinely because it will add pointless complexity to your everyday models, but occasionally you will need to make a model that looks highly realistic. For example, you might need a photorealistic rendering of an assembly or an exploded view for a user manual. This example will use ISO metric parts, but the principles are the same for all threads. I’ll assume you have a basic understanding of creating 3D primitives and the boolean operations (union, subtract and intersect).

BricsCAD Standard Parts

The first thing to note is that unless you insist on the threads being helical, you probably have very little work to do. Have a look at this ISO M10 screw and bolt. It doesn’t have helical threads, but is it good enough for your needs?

If so, and if you have BricsCAD Platinum, you can save yourself a lot of work. I created this model using the Standard Parts panel on the left. To create the nut, I used ISO > HEX NUT > ISO 4033 > M10 x 1.5. Having chosen my component, I just dragged and dropped it from the panel (the bit that’s highlighted above) into the drawing and specified an insertion point. The screw was similarly easy: ISO > HEX NUT > ISO 4018 > M10 x 1.5 and Length 50.

Here’s a close-up. This is good enough for most cases, but if you’re picky you can tell the threads aren’t helical. If you’re really, really picky you can tell that the threads aren’t the exactly correct profile (e.g. no flats on the peaks or troughs).

Also, getting really, really, really picky, there is neither a runout of the thread at the top nor a spherical end at the bottom. If that’s not good enough and you need to construct a model that provides a completely accurate representation, how can you do this? Read on.

Creating helical threads in BricsCAD and AutoCAD

I’m going to recreate the above screw as our example, but will make it dimensionally accurate. For simplicity, I’ll ignore the hex head and just do the shaft part. I’ll use BricsCAD to work through this, but it doesn’t matter. The steps are exactly the same in AutoCAD. There are a few things in BricsCAD’s 3D repertoire that might make things a little easier than in AutoCAD, but I won’t be using them here. I will be switching back and forth between visual styles in order to better show what’s going on with the geometry, so don’t expect consistency between the images.

First, construct a few basic parts from solid primitives. Here are the dimensions you’ll need for doing that:

From left to right, we have:

  1. DIA 20 x 40 cylinder that has been unioned with an DIA 20 sphere
  2. DIA 10 x 50 cylinder
  3. DIA 10 x 1.25 cylinder that has been unioned with a truncated cone DIA 10 to 7 x 3.75

The next step is to create the thread. There are two parts to this: the path and the profile. The path is easy: we just use the HELIX command. Specify the center of the middle cylinder as the base, a base and top radius of 5 (but specify the base radius using a known point such as a quadrant), a turn height of 1.5 (that’s the thread pitch) and a height of 50.

You might be tempted to make a simplified profile using an equilateral triangle with a side length of 1.5 (the pitch). Hot tip: don’t do this. Unfortunately, this will cause problems. Both AutoCAD (usually) and BricsCAD (sometimes) may refuse to create the thread because it thinks it self-intersects. You can use a simple triangle profile, but you’ll need to make it slightly smaller than the pitch: scaling by a factor of 0.95 should do.

Instead, let’s do it more accurately. The profile can be created as a polyline using conventional 2D techniques. Here are the profile dimensions for an M10 x 1.5 thread:

Note: to be completely accurate, the thread profile should also have a root radius. Feel free to add one if you like.

Either draw this profile in place using an appropriate UCS such that it is vertical up against the middle cylinder, or draw it in WCS and then move it into place using the ALIGN command. Although having the profile located in the right plane and location is theoretically not necessary, in practice it makes creating the thread much less fraught.

Here’s a tip that will save you a lot of trouble later: move the profile very slightly away from the center of the cylinder. A distance of, say, 0.01 will do. Here’s what it should look like if you zoom in far enough:

If you don’t do this, your CAD application will get into trouble later when you try to subtract the thread, because the outside of the thread and the cylinder will coincide, causing problems for the software. Having the outside of the thread just slightly beyond the edge of the cylinder will prevent this issue. Instead of kludging things by moving the profile slightly as described here, you could alternatively draw the profile such that it’s dimensionally accurate but with an outside edge slightly beyond the cylinder. Just make sure you don’t extend the profile so far that you run into the self-intersecting problem.

Next, use the SWEEP command, select the profile and the path. That should give you this:

Subtract the thread from the cylinder. Now move the cylinder/cone primitive into place on top of the shaft using CENter osnap and union the two solids, producing the elegant thread runout you see here:

Move the cylinder/sphere primitive into place on top of the shaft using CENter osnap:

Finally, intersect the two solids, producing this domed end to the threaded shaft:

Here’s the finished product in BricsCAD after I added a hex head to the top, unioned the solids together and added a brushed metal material.

Summary

The steps are the same in AutoCAD and BricsCAD:

  1. Create the primitive objects you’ll use later to define the threaded object
  2. Create a thread path using HELIX
  3. Create a thread profile polyline and move it into position
  4. Ensure the profile extends slightly beyond the edge of the shaft
  5. Use SWEEP to create the thread
  6. Subtract the thread from the shaft
  7. Move the cone/cylinder primitive into place and union the parts
  8. Move the sphere/cylinder primitive into place and intersect the parts

If you want to do this in a nut or hole, use the same principles. You just need to reverse the thread profile such that it’s pointing outwards into the hole before sweeping and subtracting.

Importing SketchUp files into AutoCAD

2 Replies

Do you have a SketchUp (SKP) file you need to import into a DWG? Need to know how to do it? Tried it but it didn’t work? This tip is for you.

If you’re using AutoCAD 2016 to 2019 for Windows, you can download and install the SketchUp Import plug-in from the Autodesk App Store. If that goes according to plan, this will add the command IMPORTSKP to AutoCAD. You may need to restart your AutoCAD first. It’s straightforward enough; select a file to import and it becomes a block in your drawing.

Reading the reviews for this add-on, it’s clear that it’s not working for many people. If it does work, it only imports SketchUp files up to 2017 format (2016 on 32-bit AutoCAD).

What if it doesn’t work? What if it does work but you have an unsupported 2018 version SKP file? Well, this post could arguably fit into the Why every AutoCAD CAD Manager should have a copy of BricsCAD series, because this is an example of BricsCAD acting as a workaround for AutoCAD limitations. SketchUp files are supported in BricsCAD’s native Import command, no add-ins required. If you have BricsCAD V18.2.10 or later, 2018 version SKP files are supported. If you have an earlier version of BricsCAD you can download the latest here.

Importing SKP files is also supported in the free BricsCAD Shape application, but at the time of writing the version is V18.2.06, which only supports SKP files up to 2017 format.

Why every AutoCAD CAD Manager should have a copy of BricsCAD – part 6, future proofing

2 Replies

This is the sixth and final post in this series where I explain why this statement holds true:

As a CAD Manager looking after AutoCAD users, or a power user looking after yourself, it’s worth your while to have a copy of BricsCAD handy.

This post explains why adding a copy of BricsCAD to your stable of AutoCAD licenses is a good thing for your future and that of your company.

A CAD Management thing I did a few years ago was to examine the options for replacing AutoCAD and other Autodesk products. I was an AutoCAD loyalist (albeit a somewhat critical one) with over a quarter of a century invested in it. I was looking after the deeply entrenched and very heavily customised CAD environment of a major public utility company that had been using AutoCAD as its primary CAD system since the late 1980s. Hundreds of custom commands were in place and providing priceless productivity benefits. Hundreds of thousands of DWG files were on file, with thousands more coming through every month. The inertia behind AutoCAD was very, very strong. Looking outside the cage was a pretty radical step to take. What led me to that point?

  • Autodesk business policy. Autodesk has become increasingly anti-customer over the years in ways that will be familiar to all readers of this blog. I won’t rehash them here. This leads to…
  • Increasing costs. Autodesk software is expensive and getting more so. Autodesk has made no secret of its intention to move to an all-subscription (rental) model. This is an attempt to treble the ongoing income Autodesk receives, in return for doing as little as possible. Which leads to…
  • Lack of progress. It had become clear that the days of AutoCAD seriously improving from release to release were over, never to return. This isn’t because there is no room for improvement, it’s because Autodesk doesn’t want to improve AutoCAD. AutoCAD won’t be permitted to become too capable because that would just eat into sales of Autodesk’s other products. You’re not going to see 3D parametrics or sheet metal capabilities in AutoCAD: buy Inventor instead. You’re not going to see BIM capability: buy Revit. Beyond the internal competition issue, some years ago, Autodesk leadership lost interest in what it perceived to be an old-fashioned dead-end product. The income from AutoCAD customers is being diverted to fund purchase and/or development of more fashionable and interesting products.
  • Frustration with Autodesk’s Beta program. The goings-on within the Autodesk Beta program must remain private, so what I can say here is limited. I can say that I spent many years contributing large numbers of hours to that program in order to attempt to improve the product. As time went on, the positive results that emerged from that effort decreased; that much is no secret because it is apparent in the product. I felt I was fighting against Autodesk to try to improve the product, and losing. There were a few final incidents that persuaded me to stop bashing my head against that particular wall. I wasn’t the only one. I stuck it out for years longer than many very valuable people who had already given up before me.
  • Proxy server issues. Over the years, Autodesk’s habit of attempting to do sneaky things to access the Internet had caused a variety of problems in a secure proxy server environment. This caused several things not to work, and harmed performance severely in some places. As Autodesk’s developers turned over, things that worked in one release would not work in the next. Attempts to get this addressed as a support issue would result in the environment being blamed. These problems increased over the years as Autodesk threw in more and more connectivity-requiring features. There was a non-zero and ever-increasing possibility that one day, Autodesk would screw things up altogether and leave us with non-functioning software. That has already happened for some people, and although the stoppage has generally been temporary, it is important to have redundancy.
  • Poor performance. AutoCAD has been getting bigger and slower. Downloads are huge and Autodesk does its best to make them as difficult as possible. Installations take an age, as do uninstallations. Startup times are terrible and getting worse. My users were complaining – a lot – and there wasn’t much I could do about it.

That’s what moved me to take a very, very serious look at alternatives. Your motives may differ. Just the desire to have a Plan B in case of disaster might be enough.

If you don’t feel moved to investigate, you may eventually be faced with no option. Sooner or later, the person who holds the purse strings at your company may point to this year’s much bigger Autodesk invoice and ask, “What are we getting for this? How can we reduce our costs?” When that happens, you don’t want to be scrabbling round for answers before that invoice needs to be paid. Look into the options in advance. Are you really wedded to AutoCAD or are you actually tied to DWG?

Days of Future Past

Here’s my suggestion. Examine the available alternatives to AutoCAD and the other Autodesk products you use. Do it sooner rather than later so you get the chance to determine the answers to non-trivial questions like these:

  • Capability. Does the alternative product do everything that AutoCAD does, that your users need it to do? Does it do other stuff that AutoCAD doesn’t that you might find useful? What’s the performance like? How does it work on the hardware you have? Does it have user interface elements that don’t just look good but work productively in practice?
  • Compatibility. You will almost certainly demand extremely good DWG compatibility, but this question goes well beyond that. Will your LISP work? How about DCL? ActiveX support? DOSLib? Other programming languages? Can you carry over your customisation files? Can you make the interface look the same? If you have custom toolbars, or ribbon, or even image menus, do they carry across? Can your users carry across their skills without downtime, extensive training and a productivity hit? Can AutoCAD and the potential replacement coexist without issues? Can you use a common set of custom support files pointed at by both products? Will it work well on your hardware?
  • Add-ons. If you’re using third party products on top of AutoCAD, or if you’re using an AutoCAD-based vertical, is that product or an equivalent available? Does it work well? What do the objects they create look like in plain AutoCAD? Can you round-trip through AutoCAD and back and retain your intelligence? You’re probably going to have to test this with evaluation software and your own data.
  • Licensing options. Is perpetual licensing available? Can you stick on a release for a few years and still purchase upgrades later? Has the company committed to providing you with licensing options or has it made noises about going all-rental? Is network licensing available? Does it coexist problem-free with Autodesk’s network licensing software?
  • Costs. Compare the likely costs for all your options over several years. You’re going to have to make some assumptions. It can be difficult to work out what they should be.
  • Track record. Has the company been around for a while? What reputation does it have? Does it treat its customers with respect? How good is the support?
  • Future prospects. Is the company likely to be around long-term? Is it actively developing the product you’re interested in? Is it innovating? Is it merely following AutoCAD at a distance or charging ahead? Is the product going to be limited by Autodesk-like internal competition?

I went through all of these questions and settled on BricsCAD as the best option in my company’s case. In fact, several aspects made it really the only viable option. The product impressed me with high performance, capabilities well beyond AutoCAD in several important areas, a very high degree of compatibility (particularly LISP but also other customisation files), the availability of perpetual licensing and much lower ongoing costs. The company impressed me with its honesty and attitude toward customers.

Most of all, I was won over because I could see that the product had a future. Subsequent improvements have only strengthened that view.

Obviously, you need to make your own judgement based on your own circumstances. I would suggest looking at all the options, including sticking with AutoCAD permanently, with or without subscription or maintenance. Maybe you can use my investigations as a starting point, but I encourage you to start investigating now rather than when you’re under time pressure and don’t have time to do a thorough job.

It will cost you a few minutes to download and install of an evaluation BricsCAD and start preparing for the possibility of a different future. Maybe it won’t turn out to be part of your company’s future, but it could still be part of your future.

Options are good. Learning is good. Best case scenario, your knowledge is going to save your company money and improve its productivity, and you will end up smelling of roses. Worst case scenario, you’re going to spend some very justifiable time doing something new, different and interesting. I recommend it.

Other posts in the Why every AutoCAD CAD Manager should have a copy of BricsCAD series:

Part 1, fixing drawings
Part 2, 3D operations
Part 3, parts on demand
Part 4, efficiency
Part 5, LISP

Tiny tip of the day – ten more Windows shortcuts

Leave a reply

My last tiny tip post (Ctrl+Shift+Esc takes you directly to Task Manager) seemed quite popular so here’s another one.

This post includes ten more keystrokes that I use to save me time with CAD management, development, documentation and support. All of these use the Windows key, which is located between Ctrl and Alt on most keyboards.

These keystrokes apply to Windows 10 but most of them also work with earlier releases.

Keystroke Action
Win + D Show the desktop (minimize all windows). It’s a toggle, so use it again to put them back how they were. (Win + M also minimizes all windows and Win + Shift + M restores but I find Win + D easier to remember).
Win + E Start an Explorer window.
Win + Plus (+) Magnify (pixel fattener). You can magnify the screen more in steps by repeating Win + Plus. Win + Minus (-) reverses one level of magnification. Win + Esc exits magnification mode.
Win + number Same as picking the <number> item on the taskbar. For example, if you have pinned Notepad to the taskbar and it’s in the 5th position, Win + 5 will start a Notepad session. Win + 5 again will minimize Notepad. Win + 5 again will restore Notepad.
Win + Shift + number As above but always starts a new instance of the application. For example, if you have Notepad running already but want to force a new instance, you can use Win + Shift + 5.
Win + Ctrl + Shift + number As above but runs the instance as an administrator.
Win + Shift + Left or Right Move the current application to the left or right side of the screen. This is particularly handy for CAD people with dual monitors and apps that typically use up a full screen.
Win + I (letter i) Settings (newer version of Control Panel).
Win + Pause System status – very handy when you’re looking at a problem on somebody else’s computer.
Win + R Run a OS command.

Bonus tip: Win + L will lock the computer for when you leave your desk (thanks Robin Capper). You can also use it to switch accounts.

There is a full list of Windows keystrokes on the Microsoft site.

Why every AutoCAD CAD Manager should have a copy of BricsCAD – part 5, LISP

5 Replies

This is the fifth post in this series where I explain why this statement holds true:

As a CAD Manager looking after AutoCAD users, or a power user looking after yourself, it’s worth your while to have a copy of BricsCAD handy.

This post is about BricsCAD being better than AutoCAD at the one thing that made AutoCAD win the race against its competitors back in the 80s – LISP. That is, AutoLISP (added fully to AutoCAD in Version 2.18) and Visual LISP (fully integrated with AutoCAD 2000).

If you’re a good AutoCAD CAD Manager, you’ll already know the reasons LISP is an extremely important tool, so I won’t cover them here. I may explain those reasons in a later post, but that would distract us from the main point. Why is having a copy of BricsCAD useful to a CAD Manager?

  • BLADE. I’ve covered the BricsCAD LISP Advanced Development Environment in various posts already, and I intend to go into greater detail in future posts. There are enough advantages over VLIDE to warrant an entire series of posts. This is simply the biggest advance for CAD LISP in 20 years; if you’re doing any reasonably complex development in LISP and you’re not BLADE, you’re wasting time and money.
  • Performance. Because BricsCAD’s LISP engine is much more modern than AutoCAD’s, the performance is much greater. In my experience, it’s about three times as fast. Some function calls are as much as 30 times as fast. If you have a user who’s complaining that your routine is taking an age to process in AutoCAD, try it in BricsCAD instead. I once saved a user half an hour in processing time for one polyline by using BricsCAD. Another aspect that will benefit you when programming and testing is BricsCAD’s generally superior performance. Got nothing running and want to get programming in the next 5 seconds? Fire up BricsCAD. Want to do a complex process on a big drawing that makes AutoCAD run out of RAM? Try it in BricsCAD.
  • Licensing. While you’re developing in BricsCAD, you’re not using up an expensive AutoCAD license. You’re using a cheaper (or even free, while you’re evaluating it) BricsCAD license. Also, it’s a perpetual license so if you ever stop paying, you can keep developing as long as you like. Oh, and it’s not going to flake out on you on those days where Autodesk’s subscription licensing server has a meltdown.
  • Extra functionality. BricsCAD’s LISP has the AutoLISP and Visual LISP functions and then some. Some of the DOSLib functions are available without even needing DOSLib, but if you need the full set of DOSLib functions they can be loaded, as per AutoCAD. A range of extended functions are available with the vle- prefix, and the LISP Developer Support Package documents these and provides the source code so you can also use them in AutoCAD.
  • Platform independence. AutoCAD for Mac has severely restricted LISP capabilities, making it unsuitable for use in a professional, efficient custom environment. BricsCAD for Mac and BricsCAD for Linux both provide practically identical functionality to the Windows version. Yes, BricsCAD for Mac really is significantly more AutoCAD-compatible than AutoCAD for Mac.

I do my LISP development in BricsCAD these days, and can attest that it’s well worth the investment in time to get the hang of BLADE.

It will cost you a few minutes to download and install of an evaluation BricsCAD and check out the LISP situation for yourself.

Edit: it’s not just LISP. See James Maeding’s comment below about .NET, too.

Tiny tip of the day – go directly to Task Manager

3 Replies

Windows software (e.g AutoCAD) taking way too long to perform a certain operation? Apparently stuck in an endless loop? Won’t stop even when you hit Esc? Need to end the task so you can try something else instead? Not even hitting the red X in the corner works? Then you might find this tiny tip handy.

Ctrl+Shift+Esc takes you directly to Task Manager.

Do not hit Ctrl+Alt+Del. Do not pass Go. Do not collect $200. Enjoy!

Why every AutoCAD CAD Manager should have a copy of BricsCAD – part 4, efficiency

2 Replies

This is the fourth post in this series where I explain why this statement holds true:

As a CAD Manager looking after AutoCAD users, or a power user looking after yourself, it’s worth your while to have a copy of BricsCAD handy.

This post is about BricsCAD being more efficient than AutoCAD for some of the things a CAD Manager might need to do. What do I mean?

  • BricsCAD starts up and closes down faster than AutoCAD, much faster in some environments. If your AutoCAD starts up slow (e.g. in some secure proxy server environments), pretty much any job you need to do to a user’s drawing that involves getting in, doing something quick, saving and getting out again is likely to be finished in BricsCAD before AutoCAD is even open.
  • If you perform a more complex operation on behalf of a user that is likely to take a while, there’s a better-than-even chance that BricsCAD will do it quicker than AutoCAD. In some cases it will do it much quicker (e.g. drawing compare).
  • BricsCAD tends to be able to cope with large drawings while using less memory than AutoCAD. If you have a user with a huge drawing who can’t work with it any more in AutoCAD and you need to split, purge or simplify it before it is usable, the very process of doing that in AutoCAD can itself be unworkably slow. Try the same thing in BricsCAD and there’s a good chance you’ll get the job done in a fraction of the time and without the same level of frustration.
  • If you perform a batch process that operaties on a set of drawings, under most circumstances it will be finished in BricsCAD well before the same thing is done in AutoCAD. Maybe this means you can process a set of drawings over lunch rather than wasting all afternoon on them or waiting until home time before setting the batch going. Plus you’re occupying a cheap BricsCAD license rather than an expensive AutoCAD one. Also, because BricsCAD uses much less RAM than AutoCAD while running, you can run your batch processes on that old PC sitting in the corner rather than having your top user sitting around watching your top spec PC grind away.
  • Certain user interface structures in BricsCAD are much more logically arranged and efficient to use than the AutoCAD equivalents. For example, if you have a drawing with an obscure setting that needs changing, unless you have an impeccable memory, you’ll find that setting much more quickly using the BricsCAD Settings command.

As I mentioned in my last post, this series is all based on stuff I’ve done in real life as a CAD Manager for a primarily AutoCAD-using company. Feel free to add your comments with your own experiences, even if they differ from mine.

It will cost you a few minutes to download and install of an evaluation BricsCAD and check out the performance and efficiency for yourself.

Why every AutoCAD CAD Manager should have a copy of BricsCAD – part 3, parts on demand

1 Reply

This is the third post in this series where I explain why this statement holds true:

As a CAD Manager looking after AutoCAD users, or a power user looking after yourself, it’s worth your while to have a copy of BricsCAD handy.

This post is about using BricsCAD as a mechanical and structural parts library for your AutoCAD users. As I mentioned in my last post in this series, I was writing a client-specific AutoCAD 3D training course recently. To demonstrate the concept of revolving profiles, and also to compare and contrast different styles of solid creation, I wanted to use a ball bearing as an example. The easiest way for me to get hold of an accurate example ball bearing model was to fire up BricsCAD (a few seconds) and select the part from the Standard Parts panel (a few more seconds).

It gets inserted as a block. After explosion to reduce it to 3D solids, I could then slice it in either BricsCAD or AutoCAD to form the basis for my example. I could save it at any stage in BricsCAD and open it in AutoCAD to continue to work on it seamlessly. What I can’t do is simply copy and paste from one application to another; you do need to save the DWG. You can then open it in AutoCAD or access the blocks using AutoCAD’s DesignCenter palette; if you’re doing this a lot you might want to point DesignCenter to a scratch DWG you keep handy for this sort of parts exchange.

There are currently 13 sets of standards:

Although you may already have your own parts library, having access to a wider range of international standards may prove useful. Aussie steel sections? Go for your life, mate.

Just how much stuff is available? A lot. Each of the sets of standards has multiple sections, each section has many parts, and many of the parts have many sizes. Depending on the part, other parameters (such as bolt length) may also be available for a given size.

Here’s the full Standard Parts panel in action, in this case selecting a nut.

BricsCAD Pro and Platinum have 3D parametrics built in (and given the minor extra cost I’d suggest going for Platinum), so it’s quite feasible to use it as the basis for your own 3D parts library. If you’ve built up a few 2D dynamic blocks in AutoCAD, you’ll be quite capable of doing the same thing in 3D in BricsCAD. The methods are different but straightforward enough to teach yourself.

As pointed out in a comment by James Maeding, you can set up a network license or two and install BricsCAD on everybody’s PC, giving everybody access to the goodies without excessive cost. Bear in mind that like Autodesk, Bricsys charges a premium for a network license over a standalone one. Unlike rent-or-go-forth Autodesk, Bricsys allows you to have a perpetual license and the total cost of ownership is substantially lower.

By the way, this series isn’t theoretical, it’s all based on stuff I’ve tried out in the real world. For example, the network license software will happily coexist with Autodesk’s network license software on the same license server. The services ignore each other; no clash, no problem. My experience is that it works just fine on a virtual server.

It will cost you a few minutes to download and install of an evaluation BricsCAD and check out the included parts content for yourself.

Why every AutoCAD CAD Manager should have a copy of BricsCAD – part 2, 3D operations

2 Replies

This is the second post in this series where I explain why this statement holds true:

As a CAD Manager looking after AutoCAD users, or a power user looking after yourself, it’s worth your while to have a copy of BricsCAD handy.

This post is about using BricsCAD to do things to help out your AutoCAD users who are having problems with 3D operations. Why would you bother using BricsCAD to mess with AutoCAD 3D models? Because sometimes AutoCAD can’t do stuff with them, and BricsCAD can.

If you have a user who finally asks for help after fighting AutoCAD for ages trying to get an operation to work such as an awkward fillet, a self-intersecting extrusion or a direct edit that doesn’t want to move, you have a couple of options:

  1. fight the same fight yourself in AutoCAD, eventually discover that the user was right, and then construct an excruciatingly awkward workaround; or
  2. fire up BricsCAD and see if you can do it there. There’s a good chance it will. If it does, hand the DWG back to the user with a smug look on your face. If it doesn’t, construct an awkward workaround in BricsCAD, because it will almost certainly be faster than doing the same thing in AutoCAD. Direct editing of 3D solids is more flexible and easier in BricsCAD; the Quad Cursor helps a lot.

I’ve been writing a client-specific AutoCAD 3D training course recently, and going through the exercises I’ve developed has been instructive. I’ve lost count of the number of times I’ve thought, “Man, this would have been so much easier in BricsCAD.” That’s before we get to the 3D parametrics that BricsCAD has had for a while and which AutoCAD never will.

Why is BricsCAD so much better than AutoCAD at making 3D work well? Because it has to be. When you base your entire product line (including BIM, parametric 3D, sheet metal and a host of other uses covered by 3rd party developers) on a single DWG-based 3D engine, that engine has to be robust, powerful, efficient and fast.

It’s not as if Bricsys can say to somebody struggling with performing 3D operations in BricsCAD that they should be using Inventor or Revit instead. That cop-out is unavailable. It has to just work.

Fortunately, Bricsys has acquired a small group of genius-level experts in this area, and holds on to them rather than dumping them when they get too experienced. It shows. Overwhelmingly, it just works.

It will cost you a few minutes to download and install of an evaluation BricsCAD and confirm this for yourself. It’s well worth it.

There are exceptions, of course. Nothing is perfect, and you will come across the occasional glitch. But those exceptions are definitely rarer than in AutoCAD. My experience also tells me that if you report those exceptions, there’s an extremely good chance that they will be fixed, and quickly. Bricsys ain’t Autodesk.

How to get your Wacom Graphire 4 tablet working in Windows 10

67 Replies

I’ve been setting up a new PC at home and one of the things I struggled with was getting my Wacom Graphire 4 tablet working. This isn’t a CAD tablet (remember those?); instead, I use its pressure-sensitive stylus for image creation and editing. Press harder and you get more ink. Turn the pen over and you automatically erase instead of drawing. Press the eraser harder and you get more erasing.

I use PaintShop Pro for my image work, by the way, not Photoshop. You can still buy and optionally upgrade PaintShop Pro perpetual licenses, which is how it should be. You’re probably aware that I don’t rent stuff unless there’s no realistic alternative.

According to the Wacom FAQ, I was severely out of luck.

What is the latest driver for the Graphire 3 & 4 (CTE) tablets?
The Graphire 3 & 4 CTE tablets made from 2003-2007 are no longer supported by Wacom and will not work with a current tablet driver. Below are links to the latest drivers available for these tablets.

Windows 8, Windows 7, Vista & XP Download Here
Mac 10.8, 10.7 & 10.6 Download Here

Not one to give up so easily, I tried a variety of drivers for my tablet (model CTE-440). They were either blocked from installation by Windows 10×64, or in the best case scenario failed to provide any functionality other than acting as a basic mouse. The tablet failed to appear as a WinTab device, so I couldn’t configure PaintShop Pro to use its pressure-sensitivity, defeating the object of having the thing in the first place.

So I did what I thought was best and put the tablet out on the verge with the other junk awaiting council collection and investigated a replacement. Not from Wacom, obviously! I don’t want to reward a company for abandoning its products. I was checking out Huion tablets, which are so much cheaper than Wacom’s that it’s probably worth taking a punt and buying one anyway.

But then the stubborn streak in me (have you noticed?) kicked back in and I had one last go. A bit more in-depth Googling led me to this page. This is an old, non-maintained, leftover page from Wacom Europe. Let’s hope it stays there. On that page I found the driver I needed: DRIVER 5.30-3 RC FOR WINDOWS 8, WINDOWS 7, VISTA, AND XP. The direct link to the driver installation executable (cons530-3_int.exe) is:

http://downloadeu.wacom.com/pub/WINDOWS/cons530-3_int.exe

I retrieved my tablet from the junk pile, installed that driver, cleaned off my tablet while my system rebooted, plugged it in and away I went! In PaintShop Pro 2018, the setting is found at File > Preferences > General Program Preferences in the Miscellaneous section.

Wacom’s FAQ gave me a bum steer. Yes, the driver I used isn’t supported in Windows 10 and it isn’t current, but I don’t care. It works just fine and means my perfectly good as-new tablet isn’t landfill. Wacom needs to do better both in terms of supporting its hardware with current drivers and providing more useful information to its customers.

Video – 3Dconnexion fine tuning in BricsCAD and BricsCAD Shape

3 Replies

The second video in the cad nauseam YouTube channel is more typical than the first in that it’s a tips and tricks video. In this case it only applies to BricsCAD and Shape users, but future videos will provide information for AutoCAD and other DWG-based CAD applications.

CAD Panacea tip – startup files in BricsCAD

3 Replies

One of the things that might initially baffle a CAD Manager or power user when investigating switching from AutoCAD to BricsCAD is how to set up the startup routines. Head over to CAD Panacea for R.K. McSwain’s concise, handy description of how to do it.

Due to BricsCAD’s high level of compatibility, you can maintain a common folder or set of folders containing LISP and other custom files for both applications. That way, you don’t need to do double maintenance during the transition period. I’ve done this successfully in a highly complex custom environment. Some code and other adjustments were required in places, but all but a handful of my hundreds of AutoCAD LISP files worked as-is in BricsCAD with zero effort.

Having added your AutoCAD custom folder(s) to BricsCAD’s search path, I suggest you make a common startup LISP file (e.g. rename your old acaddoc.lsp to something like CADStartupDoc.lsp) and have tiny stub startup LISP files for each application (acaddoc.lsp and on_doc_load.lsp) that each loads the common startup file.

acaddoc.lsp contents:
(load "CADStartupDoc")

on_doc_load.lsp contents:
(load "CADStartupDoc")

You can add error checking and messaging if you like, but if you have control of your environment you probably won’t even need that. If you find you do need any application-specific code, you can just add it or load it from the acaddoc.lsp or on_doc_load.lsp stubs as appropriate.

BLADE – putting things back to “normal”

2 Replies

Disclaimer: I’m making money using BLADE. I’m using it on a paying project right now (well, not while I’m typing this, but you get the idea). I’m developing a routine to automate a massively repetitive task for one of my AutoCAD-using clients, and I’m developing it in BricsCAD and BLADE rather than AutoCAD and VLIDE.

I can simply develop faster in the more modern environment, and BricsCAD’s significantly quicker start-up time helps with that. So does the fact that the routine runs several times faster in BricsCAD, making testing the large data sets much more efficient. I’m getting paid on results and not by the hour, so using BLADE is putting cash straight into my pocket while giving me more time to walk my dog.

Using BLADE in production, I’m discovering a few bugs, quirks and things I don’t like. That’s totally understandable with a new feature of this level of complexity and functionality. Where I think it makes sense, I’m submitting problem reports or feature requests to Bricsys. I’m sure Bricsys already has a bunch of these from other developers, so they’ll be very busy for a while. From past experience, I know my reports will be taken seriously and acted on appropriately in a timely manner, if it’s feasible to do so. Your LISP IDE feedback won’t be ignored for decades by Bricsys.

One of the things Torsten Moses mentioned to me that didn’t make it into the published interview was that many developers are very conservative. There’s some truth in that. I’m missing certain keystrokes, for example: 1978-era WordStar Ctrl-Y to delete a line, anyone? It’s a reasonable expectation that as more VLIDE users migrate to BLADE, many requests will come in for VLIDE-like things. I’m told that some of these things will be provided in coming months.

In the meantime, there are things we conservative developers can do to make ourselves feel more at home. One of these is to configure the editor appearance. Here’s the VLIDE editor:

Here’s the BLADE equivalent:

One of the great things about BLADE is how configurable it is, and I know Torsten’s working right now on making it even more so. Configurations are stored in the Registry in a version-independent location (HKCU\Software\Bricsys\BricsCAD\VLispDbgEditor). These can be exported and imported directly or via BLADE, so multiple complete setups and configurations can be managed.

In this post, I’m going to be going through the process of configuring BLADE’s editor appearance to make it look more like VLIDE. I’m not suggesting that’s necessary or even a good idea in most cases, but if you really want to do it, here’s how.

Note: before you do all this manually, please note that at the end of this post I will provide a configuration file that will do it for you.

  1. Start up BricsCAD V18.2 or later and start BLADE using either the BLADE or VLIDE command.
  2. Open a LISP file in BLADE so you can check the effects of the changes we’re going to make.

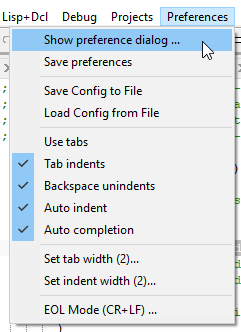

  3. Use Preferences > Show preference dialog…

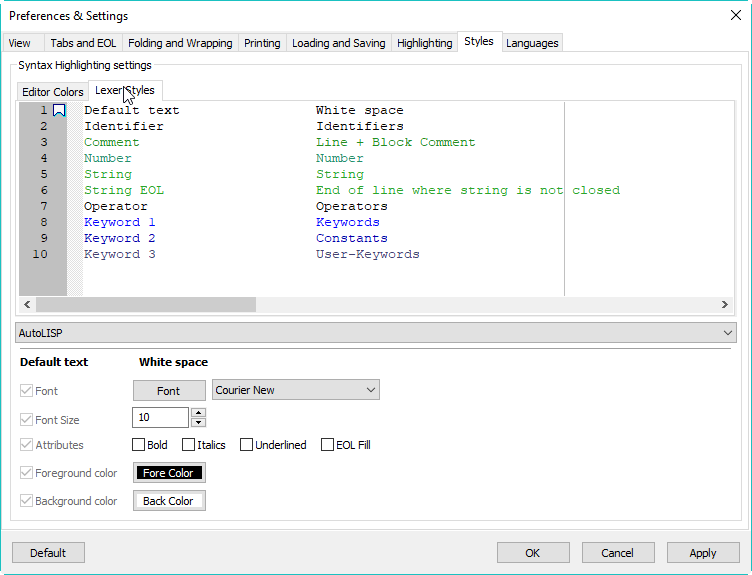

  4. In the Preferences & Settings dialog, pick the Styles tab and the Lexer Styles sub-tab.
  5. I’m perfectly happy with Courier New 10, but if you want the VLIDE look, change 1 – Default text to Fixedsys 11.

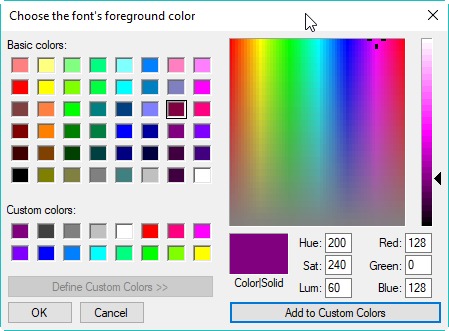

  6. Click next to 3 – Comment, turn on the Background color toggle and change the Back Color to mid-grey (192,192,192) and Fore Color to dark magenta (128,0,128). You’ll need to specify that RGB value in the lower right corner and use Add to Custom Colors to do this.
  7. Click next to 5 – String and change the Fore Color to magenta (255,0,255).
  8. Click next to 7 – Operator and change the Fore Color to red (255,0,0).
  9. The 8 – Keyword 1 setting should already be blue as in VLIDE. If you want system constants such as T, nil and pi to also be that shade of blue then change 9 – Keyword 2 accordingly. Personally, I prefer a different shade so they stand out. Mid-dark cyan (0,128,192) works well.
  10. I like the pale grey background in BLADE that helps identify the current line. If you don’t, click next to 8 – Caret colour and turn off the Background color toggle.

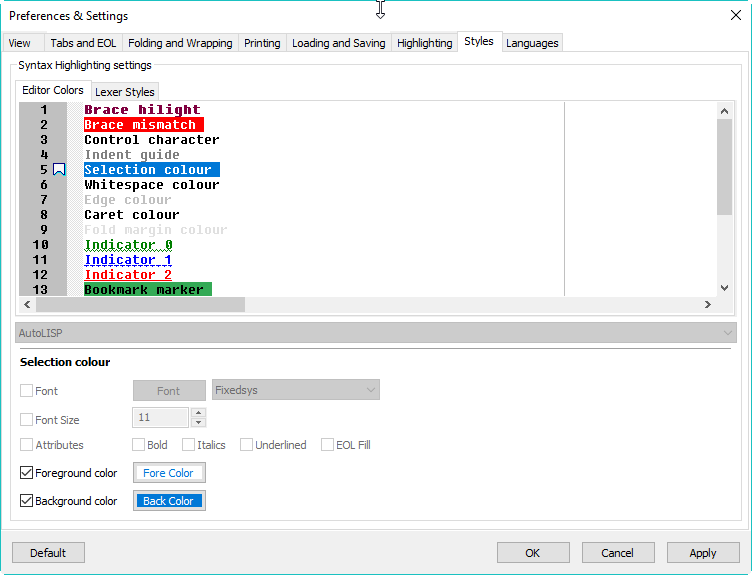

  11. Switch to the Editor Colors sub-tab, click next to 5 – Selection colour and change the Back Color to a custom mid-blue (0,120,215).
  12. While you’re in the Editor Colors sub-tab, there are a few other non-VLIDE things you can play with. 1 – Brace hilight and 2 – Brace mismatch are dynamically applied to matching and non-matching parentheses respectively. I like my Brace hilight setting to be plum and bold (turn on the Attributes toggle to enable this):

I like my non-matching setting to be white on red (the inverse of a normal parenthesis so it shows up):

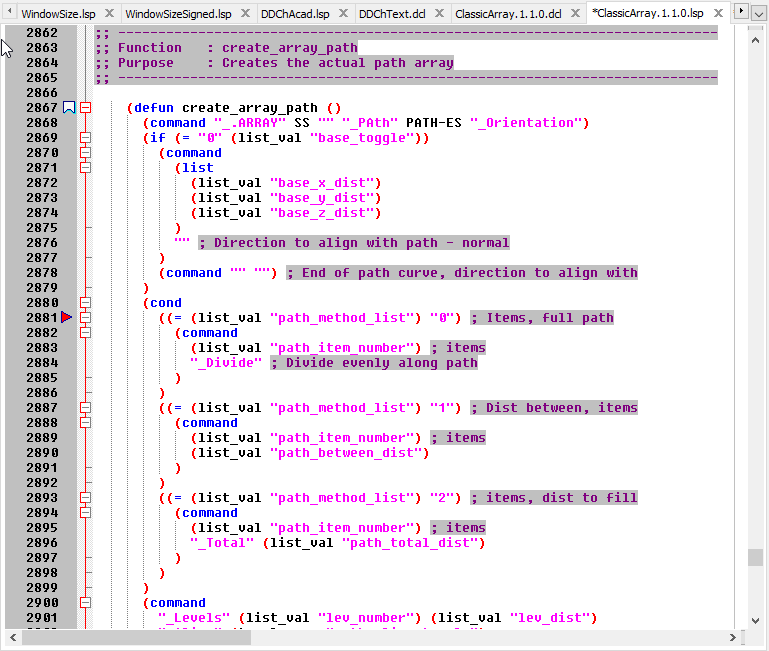

Changing all that should give you something that looks like this. Familiar enough?
There are several things in the above image that might be unfamiliar but which I suggest you leave turned on because they’re useful. If you really insist, here are the locations for these settings in the Preferences & Settings dialog:

  1. Line numbers  – View > Margins, Show line number margin
  2. Marker margin – View > Margins, Show marker margin. If this is turned off, bookmarks show up using the settings under Styles > Editor Colors > 13 – Bookmark marker.
  3. Edge marker (that vertical line on the right indicating 80 character width) – View > Edge marker > Type, No background.
  4. Indentation guides (those vertical lines that show you what your code is lining up with) – Tabs and EOL > Indentation, Show indentation guides.
  5. Code folding margin (the margin on the left that allows you to collapse functions, etc. – Folding and Wrapping > Show code folding margin.

Unlike VLIDE, the default in BLADE is to use spaces for indentation, not tabs. As I don’t know of any LISP developer who uses tabs except by accident, this is a much more sensible default. But if you really want to use tabs, turn it on using Preferences > Use tabs and set the width to the VLIDE default of 8 in Preferences > Set tab width.

If you’ve left opening parentheses on previous lines and have indented the following code as usual, then as you go on to finish off the code with closing parentheses, in BLADE a single backspace will take you back your indent width (2 spaces by default) rather than a single space as in VLIDE. If your coding finger can’t get used to this keystroke-saving feature, you can turn this off with Preferences > Backspace unindents.

Having done all that, and having arranged the rest of the interface to your needs (overall window size, pane and field widths, etc.), make sure you save it! It’s as simple as Preferences > Save preferences, but it’s not done automatically. If you want to keep a safe copy of your settings, you can do so with Preferences > Save preferences to file. This simply exports the relevant part of the registry to a .reg file of your choice. This is a text file you can hack about with at your leisure (using BLADE if you like!), and you can even make files that represent subsets of your preferences.

For example, I’ve removed all but the style settings from a .reg file I exported. I’ve uploaded it renamed as a .txt file because .reg files are considered dangerous by browsers, etc.

If you want to use this to give BLADE that old familiar VLIDE look, here are the steps.

  1. Download SteveVLIDE-likeBLADEStyleSettings.reg.txt.
  2. Rename the file to remove the .txt extension so it becomes SteveVLIDE-likeBLADEStyleSettings.reg.
  3. In BLADE, use Preferences > Load Config from File
  4. Close BLADE and BricsCAD.
  5. Restart BricsCAD and BLADE.

That should do it. Happy BLADEwork!

Setting your application or document window size using LISP

1 Reply

I intend to produce a few videos containing tips, tutorials, product comparisons and the like. I’ve set up a cad nauseam YouTube channel, but don’t bother visiting it yet because it’s empty.

One of the things I need to do for these videos make sure I’m capturing the screen at an appropriate resolution. I knocked up a bit of Visual LISP to take care of this task quickly and accurately, and you might as well have it. It’s a simple routine that allows you to accurately size either the main AutoCAD application window or the current document window (drawing area) within the main window.

The file is WindowSize.lsp. It should work in all full AutoCAD releases (not counting LT and AutoCAD for Mac) and AutoCAD-based verticals from 2000 on.

It works in recent BricsCAD releases (except the free and LISPless BricsCAD Shape). I’ve only tested it in Windows, but it should also work in the Mac and Linux versions due to the high degree of LISP compatibility provided even across platforms. It also works in ZWCAD 2018 for the main application window, but don’t use it on the document window because that doesn’t work.

Download it, put it in a location of your choice and load it into your CAD application (for example by dragging and dropping it from Explorer onto the drawing window).

Note: In AutoCAD 2014 and later, loading any LISP or other executable file may result in a warning depending on the release, the security settings, whether the file is located in one of AutoCAD’s trusted locations, and whether the file is digitally signed. I’ve digitally signed the file to reduce the incidence of warnings, but you could still see something like this:

The verified publisher should be cad nauseam as shown above. If you pick Always Load then you shouldn’t see the warning again for this file or any others signed by cad nauseam. Feel free to edit the file for your own needs, but if you do the signature will become invalid and you’ll be warned again when loading the file.

Once it’s loaded, enter the command WindowSize. The prompt sequence goes like this:

Command: WINDOWSIZE
Window to size [Application/Document] :
Width in pixels <1280>:
Height in pixels <720>:

Now, back to work on the first of those videos.
